C*Core leads in the field of domestic powertrain control and four generations of products have successfully realized mass production, such as CCFC2003PT(the first domestic 32-bit microcontroller for engine control)，CCFC2017BC,CCFC3007PT and CCFC3011PT.
An ultimate low-cost engine control solution
Features of CCFC2017BC:Achieves functional safety of ASIL-B and EVITA-Lite.Integrateing single-core CPU C3007 (300MHz), 2.5MB FLASH, 416KB RAM, supporting A/B SWAP. Rich communication interfaces: 8x CANFD, 14x LIN, 9x DSPI,4x I2C, 149x IO, 2x ADC(total 53), 64x eMIO. Supporting differential MSC bus, with a maximum communication frequency of 40MHz for UCHIP, driving fuel injection and ignition.Advanced timer ETPU2, programmable for processing crankshaft and camshaft position signals. Supports Decimation Filter for knock sensor processing.

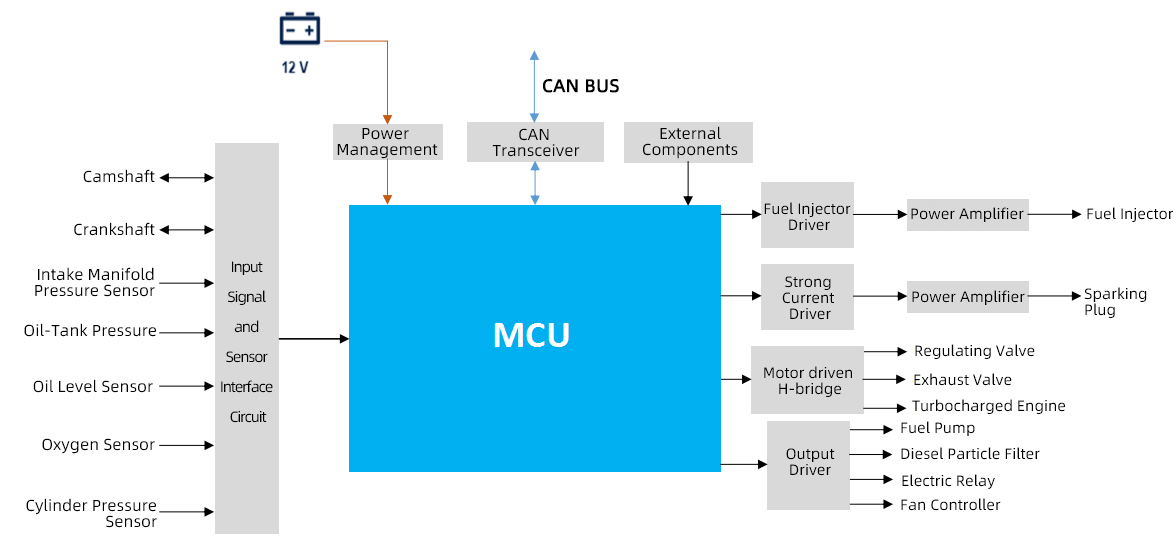

This ECU solution features fuel injection, ignition, idle, and throttle control. The Core chips, R&D, and production have achieved full localization.
Design Support
We provide support for application design. You can find our design support column on the following website
CONTACT US
If you are interested in our products, please contact us at
Find partners for software, hardware, development tools, and service support
The products and services provided by our partners can complement our automotive solutions:
